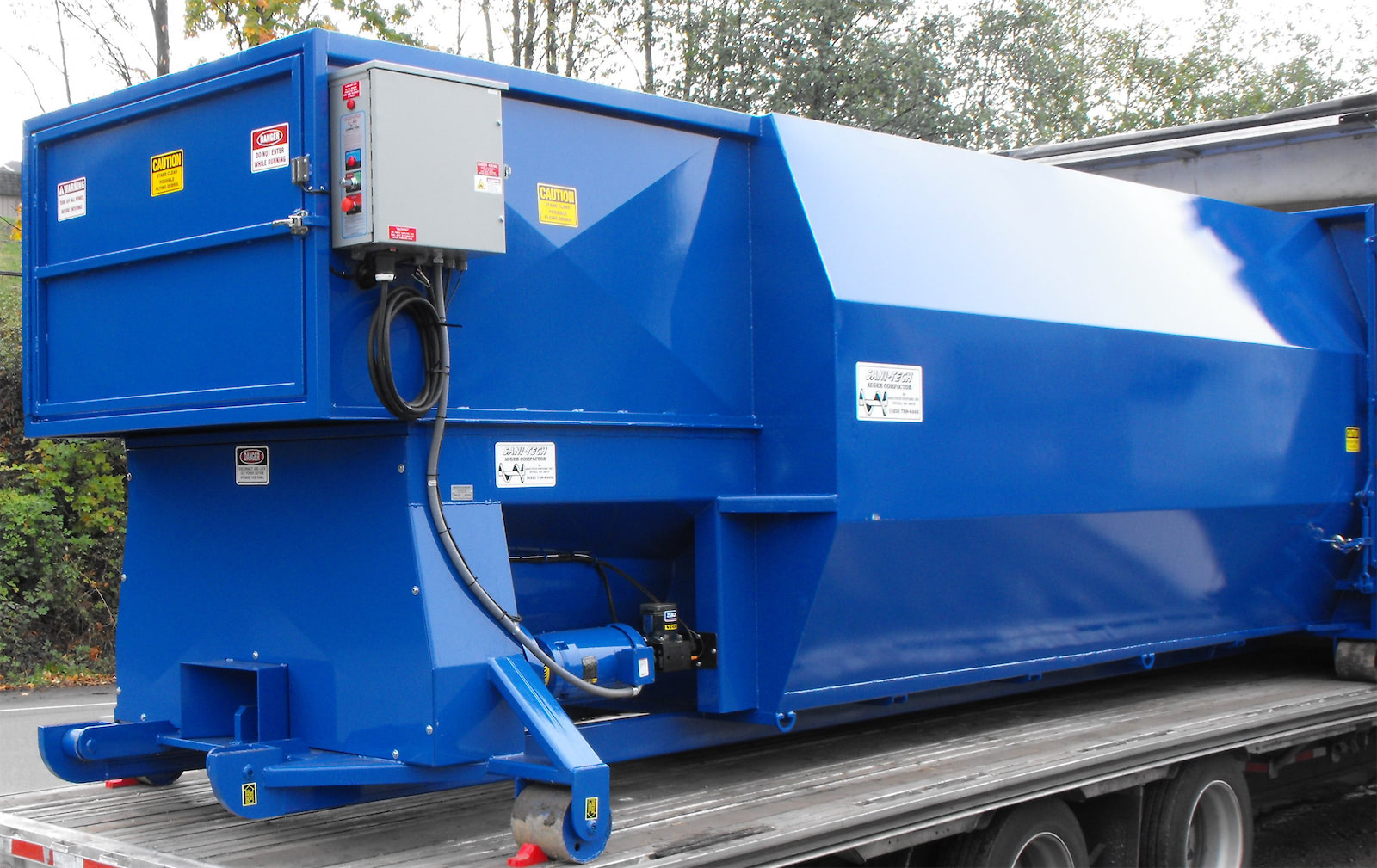

SC-10-46/36
Sanitech Auger Compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.
The Model SC-10-46/36 was designed to handle wet, hazardous and/or messy waste.
Download Brochure
- Specs
- Dimensions
- Facilities
- Features
- Options
| Hopper Capacity |
5.4 Cubic Yards |
| Auger Diameter |
Tapered 46" to 36" |
| Auger RPM |
8 |
| Motor |
10 HP |
| Displacement Rate |
270 Cubic Yards / Hour |
| Electrical |
480V - 3 Phase |
| Amperage |
30A / 15A |
| Drive |
Electro-Mechanical |
| Control Panel |
UL Listed 110 Volt |
| Weight |
See Dimensions table below |
| Auger Torque |
204,000 In. Lbs. |

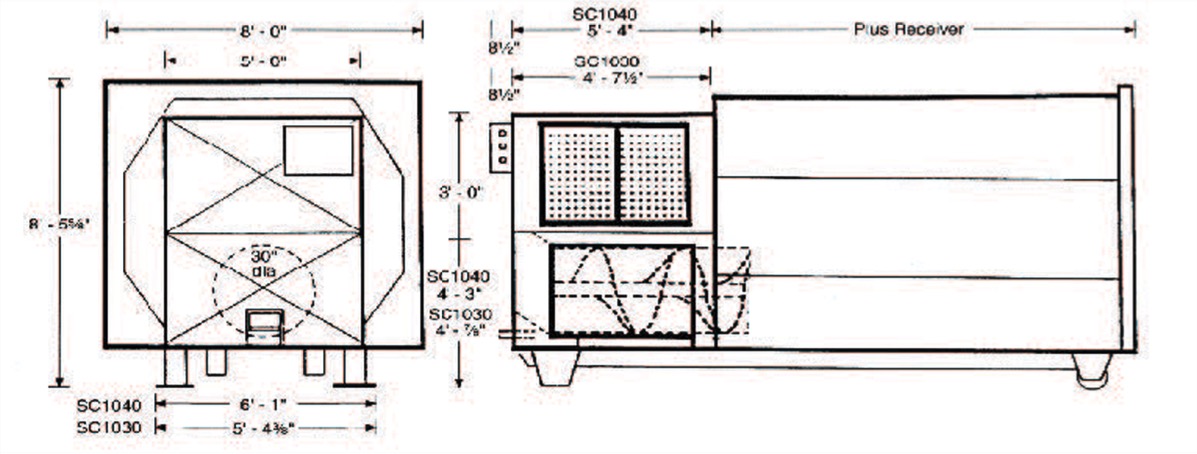

| Model / Bin Size |
Overall Length |
Bin Weight |
| SC1046/36 - 15 |
15' - 0" |
6,600 lbs |
| SC1046/36 - 20 |
18' - 0" |
7,200 lbs |
| SC1046/36 - 25 |
21' - 0" |
7,900 lbs |
| SC1046/36 - 30 |
24' - 0" |
8,400 lbs |
| SC1046/36 - 35 * |
26' - 0" |
9,000 lbs |
* Request prior confirmation with refuse hauler regarding length of this unit.
- Cinemas
- Food Processing Plants
- Grocery Stores
- Hospitals
- Multi-Family Dwellings
- Office Buildings
- Prisons
- Restaurants
- Schools
- Shopping Malls
- 100% Liquid Tight System
- Replaceable Cast Auger End Wear Plate
- Adjustable Running Time
- Bin Near Full Indicator
- Liquid Tight Auger Chamber
- Adjustable Compaction Density
- Safety Interlock System
- Key-Lock Start/Reverse Switch
- Mushroom Stop Switch
- Cart Dumping Systems
- Exhaust Fans
- Odor & Insect Controls
- Photo-Eye Start
- Custom Paint Colors
- Fire Suppression Systems
